Gantry Crane

Cast iron or ductile iron-made Gantry cranes are overhead cranes that have the support of freestanding legs that operate on wheels or by track. Gantry-type cranes are considered the cost-effective material handling systems of bridge cranes. These electricity-driven cranes maintain a 39 m/min to 48 m/min traveling speed range. The maximum lifting load of this range of gantry cranes varies as per different models. Mild steel made portable type version of this range of cranes can bear a maximum of 5 tons of load. The Standard of this array of cranes has been verified as per its dimension, longevity, productivity, strength, and design precision.

7.5 Ton Double Girder EOT Crane Gantry crane

7.5 Ton Double Girder EOT Crane Gantry crane

Price 1350000 INR/ Unit

Get a Price/Quote

MOQ : 1 Ton

Application
Material Handling, Industrial Plants, Warehousing, Construction Sites

Condition
New

Control Type
Push Button Pendant / Cabin / Wireless Remote

Crane Total Weight
Approx. 6,500 kg (Varies as per span)

Crane Traveling Speed
20 m/min

Emergency Stop
Other, Provided

Feature
Double Girder, Compact Design, Heavy Duty, Durable Structure

Lifting Time
According to Hoisting Speed, approx. 7-10 m/min

Max Oil Flow of Hydraulic System
Not Applicable (Electric Motor Driven)

Max Pressure of Hydraulic System
Not Applicable (Electric Motor Driven)

Max. Lifting Height
Up to 12 meters (Customizable)

Max. Lifting Load
7.5 Ton

Motor
Squirrel Cage/Slip Ring Induction Motor

Operating Mode
Cabin / Pendant / Remote Control

Power Source
Electric

Rated Loading Capacity
7.5 Ton

Span
10 meters (Customizable)

Trolley
Fixed/Movable, Double Girder Trolley

Type
Other, Double Girder EOT Gantry Crane

An Electric Overhead Traveling (EOT) crane is a type of overhead crane that uses electricity to lift and move heavy loads. EOT cranes are also known as bridge cranes.

Know more

Heavy Duty Gantry Crane

Price 3500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Ton

Application
Manufacturing Packaging, Warehousing And Other Industries

Color
Yellow

Condition
New

Crane Traveling Speed
39-48 m/min m/m

Height
6-18 m Meter (m)

Max. Lifting Load
25 Tonne

Operating Mode
Manual

Power Source
Electric

Product Type
Heavy Duty Gantry Crane

Span
18-35 m

Type
Gantry Crane

Usage
Moving Bulk Materials From One Place To Another

Know more

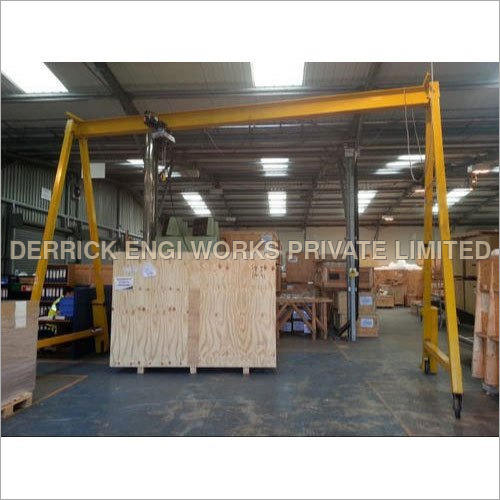

Portable Gantry Crane

Price 125000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Ton

Application
Manufacturing Packaging, Warehousing And Other Industries

Color
Yellow

Condition
New

Height
20-40 Foot (ft)

Operating Mode
Manual

Power Source
Electric

Product Type
Portable Gantry Crane

Rated Loading Capacity
4-5 Ton

Span
20 Feet

Type
Gantry Crane

Usage
Moving Bulk Materials From One Place To Another

Know more

Gantry Crane

Price 1000000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Ton

Color
Yellow

Condition
New

Feature
Good Quality

Power Source
Electric

Product Type
Gantry Crane

Type
Gantry Crane

Usage
Industrial

Know more

10 TON D/G Goliath Crane

Price 4100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Ton

Application
Material Handling, Warehouse, Construction Sites, Industrial Use

Condition
New

Control Type
Pendant/Remote/Cabin

Crane Total Weight
Approx. 10,000 kg Kilograms (kg)

Crane Traveling Speed
10-20 m/m

Feature
Heavy Duty, Robust Design, Weather Resistant

Max. Lifting Height
6-10 meters (Customizable) Meter (m)

Max. Lifting Load
10 Ton Tonne

Motor
Squirrel Cage Induction Motor

Operating Mode
Electric / Cabin or Pendant Control

Power Source
Electric

Rated Loading Capacity
10 Ton

Span
10-25 meters (Customizable)

Trolley
Double Girder Type

EOT (Electrical Overhead Travelling Crane) are commonly used for factory or industrial applications such as paper mills, steelyards, aeronautics, automotive repair shops, etc. They are the most commonly used type of overhead crane and are also extremely useful. These cranes have parallel runways, where the gap is maintained by a travelling bridge on which the hoist is mounted. As the name says, these cranes run electrically either with an operator cabin attached to the EOT Crane or through a control pendant. These cranes are equipped with the capability to lower or raise heavy loads in addition to travelling in both directions. These cranes work over railyards which are set on girders over the head.

Know more

20 TON D/G Goliath Crane

Price 4100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Ton

Application
Industrial Manufacturing, Warehousing, Outdoor Heavy Duty Lifting

Condition
New

Control Type
Pendant/Remote/Cabin Control

Crane Total Weight
Approx. 15,000 kg

Crane Traveling Speed
10-20 m/min (Variable as per requirement)

Emergency Stop
Other, Available

Feature
Robust Construction, Weather Resistant, High Reliability, Corrosion Resistance

Lifting Time
Depends On Lifting Height, Typically 6-8 m/min

Max Oil Flow of Hydraulic System
Not Applicable (Electrical Hoisting System)

Max Pressure of Hydraulic System
Not Applicable (Electric Drive System)

Max. Lifting Height
Up to 12 Meters

Max. Lifting Load
20 Tonnes

Motor
Heavy Duty Squirrel Cage Induction Motor

Operating Mode
Cabin/Remote control/Hand Pendant

Power Source
Electric

Rated Loading Capacity
20 Ton

Span
15-30 Meters (Customizable)

Trolley
Motorized Trolley with Heavy Duty Wheel Assembly

Type
Other, Double Girder Goliath Crane

Goliath EOT (Electrical Overhead Travelling Crane) are commonly used for factory or industrial applications such as paper mills, steelyards, aeronautics, automotive repair shops, etc. They are the most commonly used type of overhead crane and are also extremely useful. These cranes have parallel runways, where the gap is maintained by a travelling bridge on which the hoist is mounted. As the name says, these cranes run electrically either with an operator cabin attached to the EOT Crane or through a control pendant. These cranes are equipped with the capability to lower or raise heavy loads in addition to travelling in both directions. These cranes work over railyards which are set on girders over the head.

Know more
